AKS Networking in One Page.

By Simone Rodigari 12 min read

Two teams create AKS clusters on the same day. One discovers that its on-premises services can address pods directly. The other sees only node or load-balancer addresses. Both clusters are working as designed.

The difference starts with two decisions: where pod IP addresses come from, and which data plane moves and filters packets. After this page, you should be able to choose both deliberately, understand what AKS Automatic selects for you, and know when Advanced Container Networking Services (ACNS) adds value.

Version scope: documentation checked on 12 October 2026 against the AKS Cilium compatibility table, which lists Kubernetes 1.31-1.36 and their minimum Cilium versions. This is not a guarantee of Kubernetes version availability in every region. Commands assume Azure CLI 2.86.0 or later, meeting the current AKS Automatic requirement; they are documentation-based examples, not deployment-tested configurations.

TL;DR for leaders
Start with Azure CNI Overlay powered by Cilium for most Linux platforms.
Choose Azure CNI Pod Subnet powered by Cilium when systems outside the cluster must address pod IPs directly. Use Dynamic IP Allocation for address efficiency or Static Block Allocation for scale up to one million pods.
Use the Azure data plane when you require Windows node pools; Cilium on AKS is Linux-only.
Choose AKS Automatic when you want Azure to preconfigure Overlay, Cilium, LocalDNS, application routing, managed egress for the default VNet, and operational safeguards.
Add ACNS, a paid suite, when you need managed network observability or advanced Cilium security, performance, and multi-cluster capabilities.
IP addressing determines reachability and capacity. The data plane determines how traffic is forwarded and which operating systems, policy engines, and advanced networking capabilities are available.

Why the choice matters

Networking choices become application dependencies.

Your IP address management model determines how many VNet addresses a cluster consumes, whether connected networks can initiate traffic directly to pods, and which source address those networks observe. A poor initial subnet plan can limit upgrades or growth, while overlay networking separates pod capacity from VNet address consumption.

The data plane implements service routing and network-policy enforcement. With Cilium, eBPF programs loaded into the Linux kernel perform that work and provide the foundation for richer observability and security. AKS supports specific forward-only IPAM migrations and data-plane updates; these operations are separate and reimage node pools, so treat both choices as platform architecture.

The decision map

Two terms organize the choices:

IPAM: where pod IP addresses come from.
Data plane: how packets are routed, translated, and filtered.

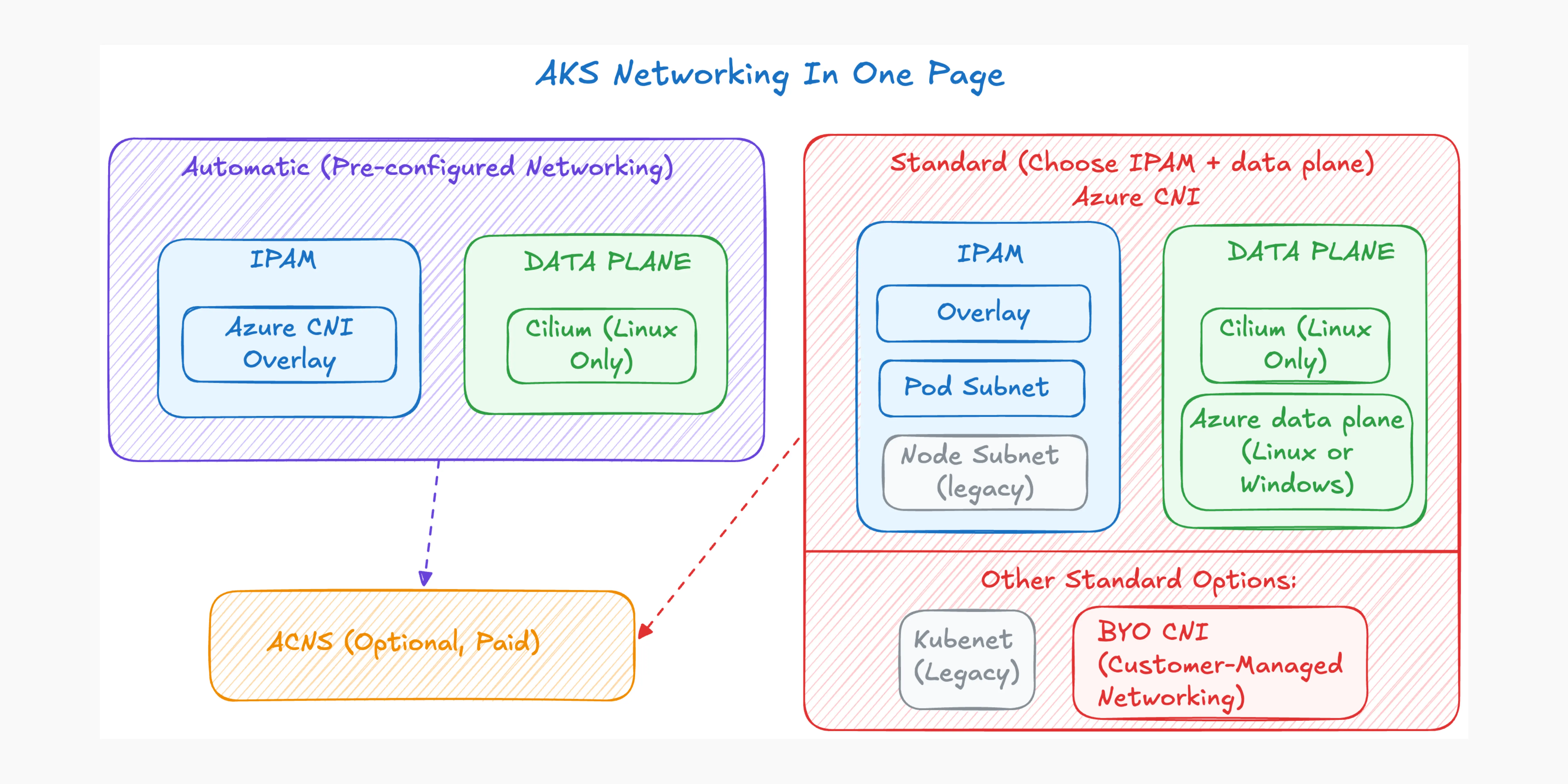

flowchart LR
  M{Cluster mode}
  M --> AUTO["AKS Automatic"]
  M --> STD["AKS Standard"]

  subgraph AU[Automatic: preconfigured networking]
    direction TB
    subgraph AIPAM[IPAM]
      AUTOI["Azure CNI Overlay"]
    end
    subgraph ADP[Data plane]
      AUTOD["Cilium"]
    end
    AUTO --> AUTOI
    AUTO --> AUTOD
  end

  subgraph ST[Standard: configurable networking]
    direction TB
    subgraph AZCNI[Azure CNI: independent choices]
      direction TB
      subgraph IPAM[IPAM]
        direction TB
        I["Choose IPAM"]
        I --> O["Azure CNI Overlay<br/>Separate pod CIDR"]
        I --> P["Azure CNI Pod Subnet<br/>VNet pod IPs"]
        I --> N["Azure CNI Node Subnet<br/>VNet pod IPs from node subnet<br/>Legacy"]
      end

      subgraph DP[Data plane]
        direction TB
        D["Choose data plane"]
        D --> C["Cilium<br/>Linux · eBPF"]
        D --> A["Azure data plane<br/>Linux or Windows"]
      end
    end

    STD --> I
    STD --> D
    STD --> K["Kubenet<br/>Separate pod CIDR · Legacy"]
    STD --> B["BYO CNI<br/>Own IPAM + data plane"]
  end

  C -.-> ACNS["Optional ACNS capabilities"]
  A -.-> ACNS
  AUTOD -.-> ACNS

Kubenet is a legacy plugin that assigns each node a /24 from a separate pod CIDR; BYO CNI delegates IPAM and the data plane to the customer-managed plugin. The ACNS feature requirements below constrain which combinations you can use.

Decision 1: IPAM and network model

IP address management, or IPAM, answers a simple question: where does a pod IP come from? Microsoft calls networking in which pods receive VNet addresses a flat network.

flowchart LR
  subgraph O[Overlay]
    direction LR
    OP[Pod CIDR] -->|SNAT| ON[Node IP]
    ON --> OE[Connected network]
    OE -. Service .-> ON
  end

  subgraph F[Flat]
    direction LR
    FP[VNet pod IP] --> FE[Connected network]
    FE -. Direct .-> FP
  end

Takeaway: overlay hides pod addresses behind nodes or services; flat networking makes pod addresses part of the connected private network.

Option	Pod IP source	Outside-cluster reachability	Private-network egress identity	Typical fit and scale
Azure CNI Overlay — recommended	Separate pod CIDR	Not directly; use a Service or ingress	Node IP through SNAT	Most clusters; conserves VNet space; up to 5,000 nodes and 200,000 pods
Azure CNI Pod Subnet	Dedicated VNet pod subnet	Direct from connected networks	Pod IP across connected VNets	Direct private pod reachability; Dynamic allocation for efficiency or Static Block allocation for scale
Azure CNI Node Subnet — legacy	Node VNet subnet	Direct from connected networks	Pod IP inside the cluster VNet; node IP outside it	Existing designs or a required AKS-managed VNet
Kubenet — legacy plugin	Separate pod CIDR	Not directly	Node IP through SNAT	Existing clusters that accept limited scale and user-defined route management; retires on 31 March 2028

For internet destinations, the public source IP depends on the cluster’s configured outbound method, not just the private-network identity shown above.

Azure CNI Overlay supports up to 5,000 nodes and 200,000 pods per cluster. Those are independent documented limits, not values to multiply. Pod Subnet instead scales within planned VNet address space and lets node and pod subnets grow independently.

Overlay still requires IP planning: reserve a fixed /24 of pod space per node, including growth and upgrade surge capacity, and avoid overlap with the node subnet and directly connected networks.

Pod Subnet offers two allocation modes: Dynamic IP Allocation is optimized for address efficiency and is limited by an Azure address-mapping limit of approximately 65,000 pods; Static Block Allocation can scale up to one million pods, provided the VNet has sufficient address space.

Dynamic allocation does not support node auto-provisioning. Moving from Dynamic to Static Block Allocation requires a new node pool on a new subnet, not an in-place conversion. Static Block also does not support Private Link Service exposure through a Kubernetes LoadBalancer Service.

Overlay is the general recommendation. Select Pod Subnet when direct addressing from connected networks or its VNet-integrated allocation characteristics are explicit requirements.

Decision 2: the data plane

For Azure CNI, IPAM and the data plane are independent decisions. Azure CNI Powered by Cilium works with Overlay, Pod Subnet, and legacy Node Subnet IPAM, but supported combinations still depend on the features you intend to enable. Kubenet and BYO CNI sit outside that mix-and-match model.

Data plane	Platform	Policy and capabilities	Choose it when
Azure CNI Powered by Cilium — recommended for Linux	Linux only; eBPF	Built-in Cilium policy; required for ACNS security and performance	Building a Linux platform or needing advanced networking
Azure data plane	Linux and Windows	NetworkPolicy enforcement requires a configured policy engine; use Calico for Windows	Windows nodes are required or compatibility dictates it
BYO CNI	Depends on the installed plugin	Customer-managed; Microsoft doesn’t support CNI-related issues	An advanced requirement needs a third-party CNI and its support model is acceptable

Cilium is not ACNS. Cilium provides a managed data plane and standard policy capabilities, while ACNS is a separately enabled, paid feature suite.

Azure data plane: Linux versus Windows

Azure data plane means the non-Cilium option selected with --network-dataplane azure, which Microsoft calls the Azure iptables data plane. Its Linux implementation uses iptables; Windows does not. Windows uses native networking components, including Host Networking Service (HNS) and Virtual Filtering Platform (VFP), rather than Linux iptables.

Optional layer: ACNS

ACNS is a paid suite enabled with --enable-acns. Its current feature boundaries matter:

ACNS area	Requirements	What it adds
Observability	Cilium or non-Cilium	Network metrics on both; flow logs and source-level metrics filtering require Cilium
Security	Cilium only	FQDN filtering, L7 policy, WireGuard, and Cilium mTLS (preview)
Performance	Cilium only	eBPF Host Routing through `BpfVeth`
Connectivity (preview)	Cilium, flat Azure CNI networking, and Fleet	Cross-cluster networking through managed Cilium Cluster Mesh

Node-level metrics are available on Linux and Windows; pod-level metrics are Linux-only. Fleet-managed cross-cluster networking (preview) requires a reachable flat routing domain: enabling ACNS alone does not make an Overlay cluster eligible.

ACNS being enabled does not automatically configure every capability. For example, WireGuard, L7 policy mode, and eBPF Host Routing require additional configuration, while FQDN filtering is enabled by default with ACNS on supported Cilium clusters.

WireGuard protects inter-node pod traffic, not same-node pod or node-originated traffic. Cilium mTLS (preview) protects TCP traffic only when both workloads are in enrolled namespaces; other traffic can remain plaintext. Its current limitations include unsupported L4/L7 network-policy enforcement and incompatibility with WireGuard and Istio. Review feature-specific prerequisites and compatibility before enabling these capabilities.

Cluster mode: Automatic or Standard

With its default managed virtual network, AKS Automatic preconfigures Azure CNI Overlay powered by Cilium, LocalDNS, and an AKS-managed NAT gateway. It also preconfigures application routing: new Kubernetes 1.36 clusters use Gateway API, while earlier versions use managed NGINX. Custom virtual networks can use other documented egress methods. Automatic also manages system capacity, scaling, upgrades, and several security defaults.

AKS Standard exposes the choices. That is useful when you need Pod Subnet, Windows nodes, an established network architecture, or detailed lifecycle control.

Which one for me?

Decision box
Want the most managed starting point: choose AKS Automatic.
Building a general-purpose Linux platform: choose Standard + Overlay + Cilium.
Need direct private access to pod IPs: choose Standard + Pod Subnet, then Cilium for Linux or the Azure data plane for Windows.
Need Windows nodes: choose Standard + Azure data plane, then choose Overlay or Pod Subnet independently.
Add --enable-acns when the paid observability or advanced Cilium feature set is required.

AKS Automatic


az aks create \
  --resource-group "$RESOURCE_GROUP" \
  --name "$CLUSTER_NAME" \
  --sku automatic \
  --enable-hosted-system

Standard, Overlay, and Cilium


az aks create \
  --resource-group "$RESOURCE_GROUP" \
  --name "$CLUSTER_NAME" \
  --network-plugin azure \
  --network-plugin-mode overlay \
  --pod-cidr "$POD_CIDR" \
  --network-dataplane cilium

Standard, Pod Subnet Dynamic IP Allocation, and Cilium


az aks create \
  --resource-group "$RESOURCE_GROUP" \
  --name "$CLUSTER_NAME" \
  --network-plugin azure \
  --vnet-subnet-id "$NODE_SUBNET_ID" \
  --pod-subnet-id "$POD_SUBNET_ID" \
  --network-dataplane cilium

Standard, Overlay, and Azure data plane


az aks create \
  --resource-group "$RESOURCE_GROUP" \
  --name "$CLUSTER_NAME" \
  --network-plugin azure \
  --network-plugin-mode overlay \
  --pod-cidr "$POD_CIDR" \
  --network-dataplane azure

These are networking skeletons, not complete production baselines. Set the resource-group and cluster-name variables before running them; the Overlay examples also require a planned POD_CIDR, and Pod Subnet requires existing node and pod subnet IDs. The Pod Subnet command uses Dynamic IP Allocation; Static Block Allocation requires --pod-ip-allocation-mode StaticBlock. Add identity, private-cluster, outbound, monitoring, availability-zone, and policy settings required by your platform.

The Azure data plane example does not enable NetworkPolicy enforcement. Add --network-policy calico when Calico enforcement is required, including for Windows node pools.

Honest limits

A Kubernetes NetworkPolicy ipBlock cannot select pod or node IPs with Azure CNI Powered by Cilium. Use pod and namespace selectors for in-cluster identities instead.

Network policies are not applied to pods using spec.hostNetwork: true, because those pods use the host identity rather than individual endpoint identities.

High-churn labels can create many Cilium identities. The documented identity limit is 65,535, so platforms running label-heavy batch workloads should review identity-relevant labels.

What to ask your platform team

Do any connected systems need to initiate traffic directly to pod IPs?
Which address ranges cover nodes, pods, services, upgrades, and future clusters?
Is the platform Linux-only, or is Windows a requirement?
Which component enforces NetworkPolicy and records flow evidence?
Is ACNS cost justified by the observability, security, performance, or Connectivity (preview) capabilities we will actually enable?
Is changing IPAM or the data plane included in the cluster migration plan?

Summary

Choose networking in layers: IPAM for reachability and capacity, then the data plane for operating-system support, forwarding, and policy enforcement. Both IPAM and the data plane are durable platform decisions. ACNS can extend their capabilities, but it does not replace sound IP planning or feature-compatibility checks.

What’s Next

A later post will follow a packet through these layers: pod interface, service translation, policy enforcement, overlay or flat routing, SNAT, and the observability points available along the path.
